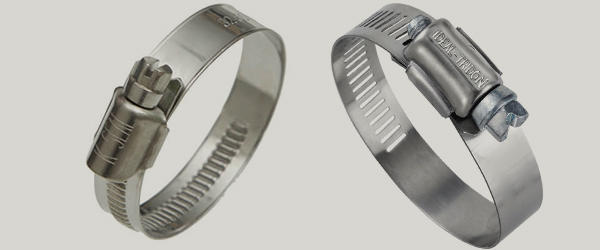

A clamp is a fastening device to hold or secure objects tightly together to prevent movement or separation through the application of inward pressure.A pipe clamp is a type of clamp often employed in piping. Clients can avail from us an array of Duplex Stainless Steel Pipe Fittings / Super Duplex Fittings.
We source these products from authentic vendors of the market, who follow industry standards in the manufacturing process. Moreover, the offered products are widely appreciated for their dimensional accuracy, high tolerance capacity and resistance against corrosion.
Features :

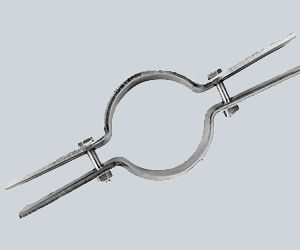

Size Range: 1/2" (15mm) thru 30" (760mm) pipe
Function: Used for supporting vertical piping.
Maximum Temperature:650°F (343°C)
Finish: Plain. Contact B-Line for alternative finishes and materials.

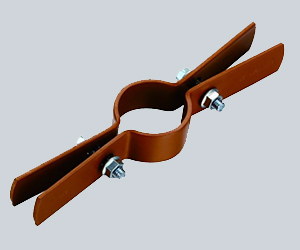

Size Range: Size 1/2" (15mm) thru 6" (150mm) copper tubing
Function: Used for supporting vertical copper tubing
Finish: DURA-COPPER™

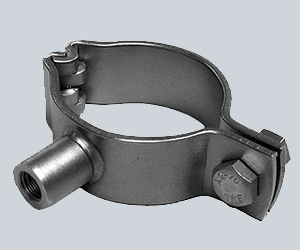

Size Range: 4" (100mm) thru 24" (600mm) pipe
Function: Clamp is used for underground A.W.W.A. cast iron and ductile iron water pipe to prevent joints from separating. The O.D. of the A.W.W.A. pipe is shown in the data table
Finish: Plain. Contact B-Line for alternative finishes and materials

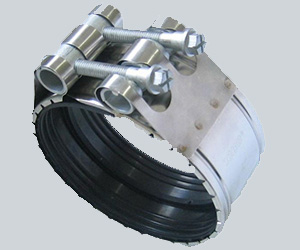

Size Range: 4" (100mm) thru 24" (600mm) pipe
Function: Clamp is used for underground A.W.W.A. cast iron and ductile iron water pipe to prevent joints from separating. The O.D. of the A.W.W.A. pipe is shown in the data table.
Finish: Plain. Contact B-Line for alternative finishes and materials.

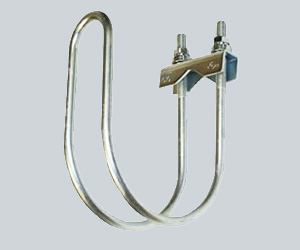

Size Range: 4" (100mm) thru 8" (200mm) pipe
Function: For bracing pipe against sway and seismic disturbance
Finish: Plain. Contact B-Line for alternative finishes and materials.
Size Range: 4" (100mm) thru 24" (600mm) pipe
Function: Recommended for the suspension of flanged or bell and spigot A.W.W.A. cast iron or ductile iron pipe.
Maximum Temperature: 650°F (343°C)
Finish: Plain.

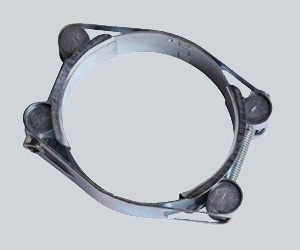

Size Range: 3" (80mm) thru 24" (600mm) pipe
Function: Recommended for the suspension of heavy-duty pipe lines
Maximum Temperature: 750°F (399°C)
Finish: Plain. Contact B-Line for alterantive finishes and materials.
Size Range: 1/2" (15mm) thru 36" (900mm) pipe.
Function: Recommended for the suspension of pipe requiring up to 4" (101.6mm) of insulation and where flexibility of the clamp may be necessary.
Maximum Temperature: 750°F (399°C)
Finish: Plain. Contact B-Line for alternative finishes and materials.

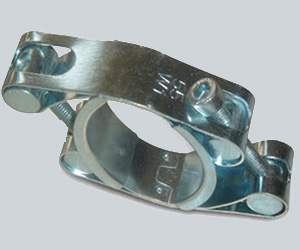

Size Range: 6" (150mm) thru 36" (900mm) pipe.
Function: Recommended for the suspension of heavy duty high temperature pipe runs requiring up to 4" (101.6mm) of insulation and where flexibility of the clamp may be necessary.
Maximum Temperature: 750°F (399°C)
Finish: Plain. Contact B-Line for alternative finishes and materials.

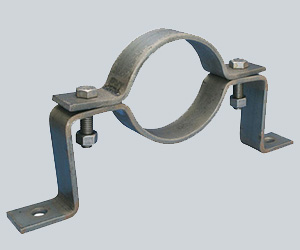

Size Range: 1/2" (15mm) thru 12" (300mm) pipe
Function: Recommended for support of pipe lines running at a definite distance from the wall or floor of a building or structure
Maximum Temperature: 650°F (343°C)
Finish: Plain. Contact B-Line for alternative finishes and materials.

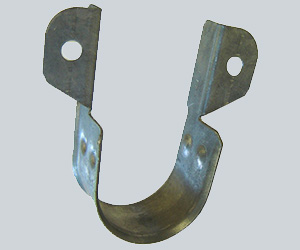

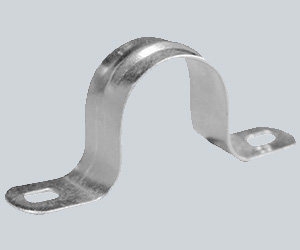

Size Range: 1/2" (15mm) thru 8" (200mm) pipe
Function: Recommended for supporting pipe with fittings vertically or horizontally to walls or ceiling. Supports pipe fglush with the mounting surface
Finish: Plain.
Size Range: 3/4" (20mm) thru 2" (50mm) CPVC pipe
Function: Intended to perform as a hanger to support CPVC piping used in automatic fire sprinkler systems. The product acts as a hanger when tab is upward and the fastener screw is in the horizontal position.
Finish: Pre-Galvanized.

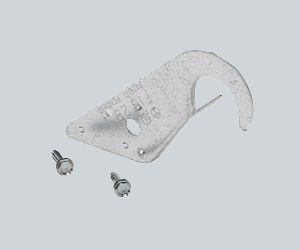

Size Range: 3/4" (20mm) thru 2" (50mm) CPVC & steel pipe
Function: cULus Listed to perform as a hanger and restrainer for CPVC or IPS piping systems. The innovative design also allows for a preferred installation location close to a CPVC fitting without applying damaging compression forces on the pipe which could result in serious Mechanical ESC (Environmental Stress Cracking).
Finish: Pre-Galvanized
Size Range: 3/4" (20mm) thru 2" (50mm) CPVC pipe
Function: Intended to perform as a hanger to support CPVC piping used in automatic fire sprinkler systems. Can be installed on the top or on the bottom of a beam.
Finish: Pre-Galvanized

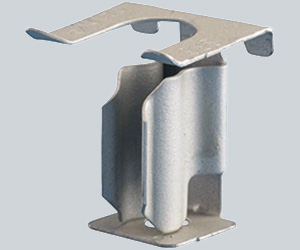

Size Range: Range:One size fits 3/4" (20mm) thru 2" (40mm) pipe
Function: Designed to be used in conjunction with band hangers to restrict the upward movement of piping as it occurs during sprinkler head activation or earthquake type activity. The surge restrainer is easily and efficiently installed by snapping into a locking position on the band hanger.
Finish: Pre-Galvanized

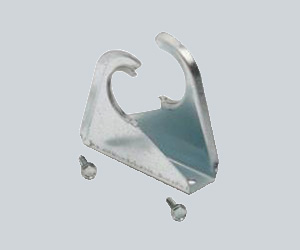

Size Range: 3/4" (20mm) through 2" (50mm)
Function: Designed to be used as a hanger and restrainer for CPVC piping where the "stand-off" design will ease installation by eliminating the need for wood blocking
